Ultimate GPR Cart System

$6,495.00

The Ultimate System is designed more for the person that will use their system daily and includes significant upgrades to the standard GPR system (see below).

SKU: ultimate-sys Category:

Description

The Ultimate System is designed more for the person that will use their system daily.

It includes everything in the Deluxe System with the addition of the following:

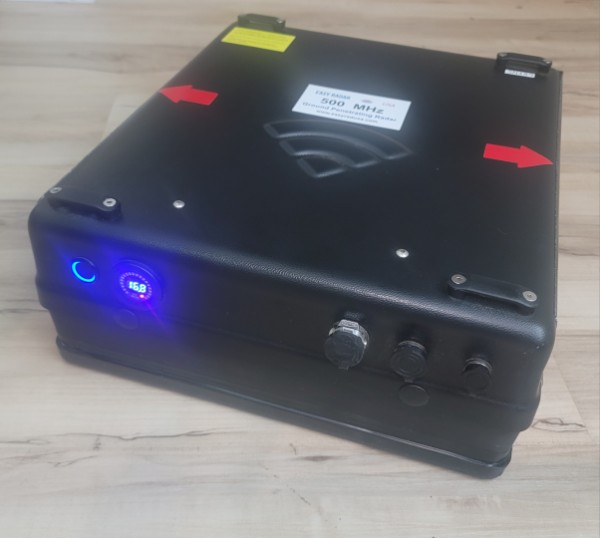

  • Weather Proof IP68 housing and connectors for ER-500A
  • Controller is refurbished GETAC 12inch 800 nit high brightness weather proof tablet running Windows 10 (Retail price on this unit alone is $4000)
  • Upgraded RAM mount for Tablet, metal support structure, very secure
  • Larger adjustable fabric Sun Shade

Technical Specifications

Technical Specifications ER500A
Manufactured in USA by Easy Radar USA LLC

Unit is fully FCC compliant

Windows and Android Control Software
USB interface with Bluetooth option

Frequency Bandwidth/td>

100 MHz – 900 MHz
Central Frequency 500 MHz
Operating Time Windows 50 ns / 100 ns
Dynamic Range 120 dB min
Horizontal Resolution 0.4 inches
Vertical Resolution 0.5 inches
Pulse Repetition Frequency 75 kHz
Pulse Length 2 ns
Pulse Differential 40 volts p-p
Pulse Rise Time 250 ps
Power Consumption 270 mAh
Batteries 10/20 x 4.0 Ah NiMH 1.2 V
Autonomy with One Charge 12 hr
Charge Time 5 hr
ADC Range 16 bits
Data Acquisiton Rate 18.2 traces/second
Samples per Trace 585
GPR Interface UART over USB
Operating Temperature Range -5° C to 40° C
Water Resistance IP 52
Size 19.5/15.75/6 in or 50/40/15 cm
Weight 9lbs or 4 kg
